Metal doors precision precision-engineered for a range of interior settings and requirements

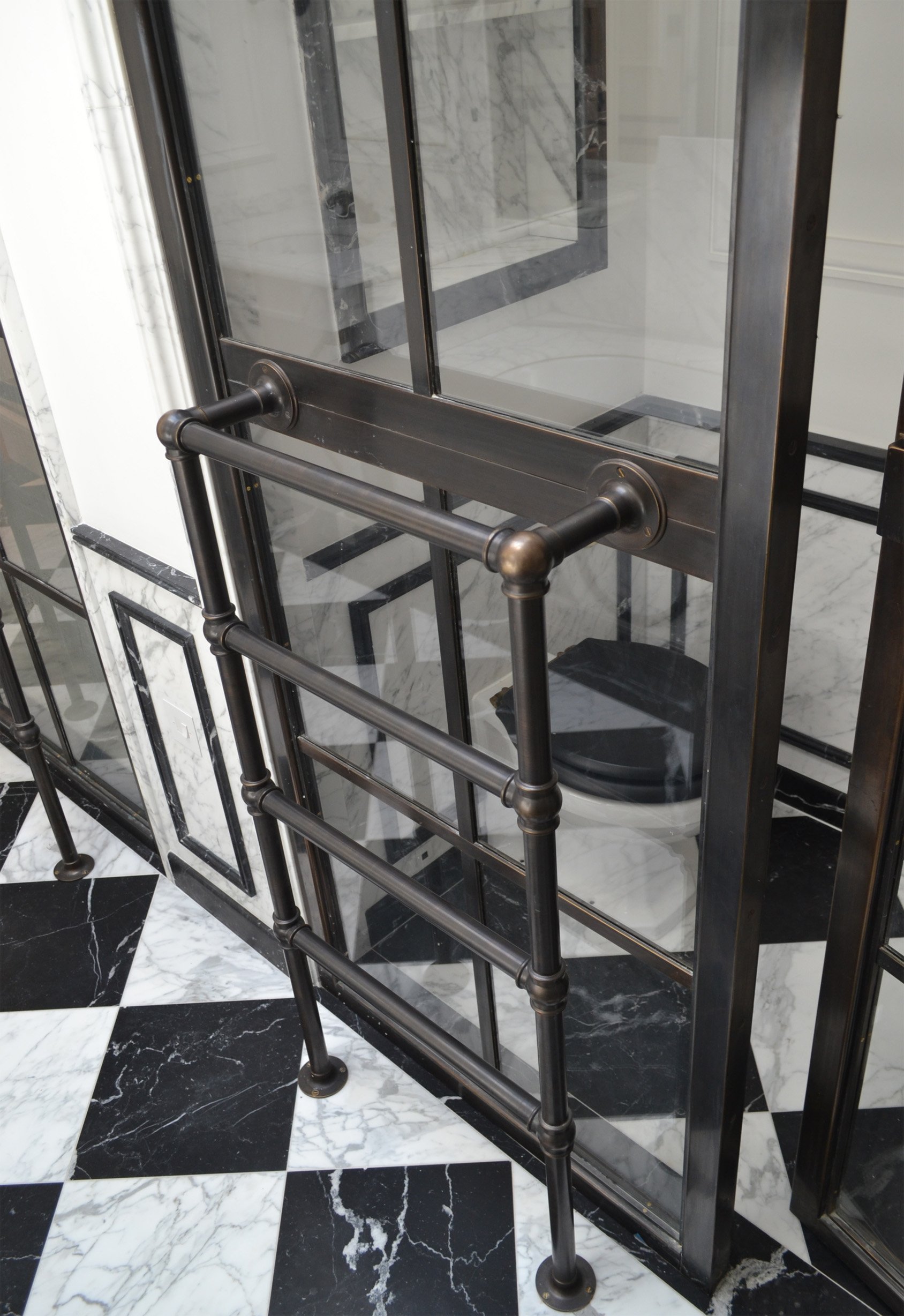

Bronze Doors

Bathroom doors and screen

Specifications:

Size 750.0mm x 2200.0mm x 50.0mm

Weight: 75.0kg ea

Static screen fixed to act as door stop.

Doors and screen manufactured from brass and steel. Brass is patinated to constitute a deep bronze finish

All fittings including hinges and screws manufactured to match door bronzing

This set of doors and screens were produced from basic architectural drawings and refined for the client.

Frame elements such as section thickness were sampled to ensure faithful reproduction from original drawings.

Doors manufactured post site survey.

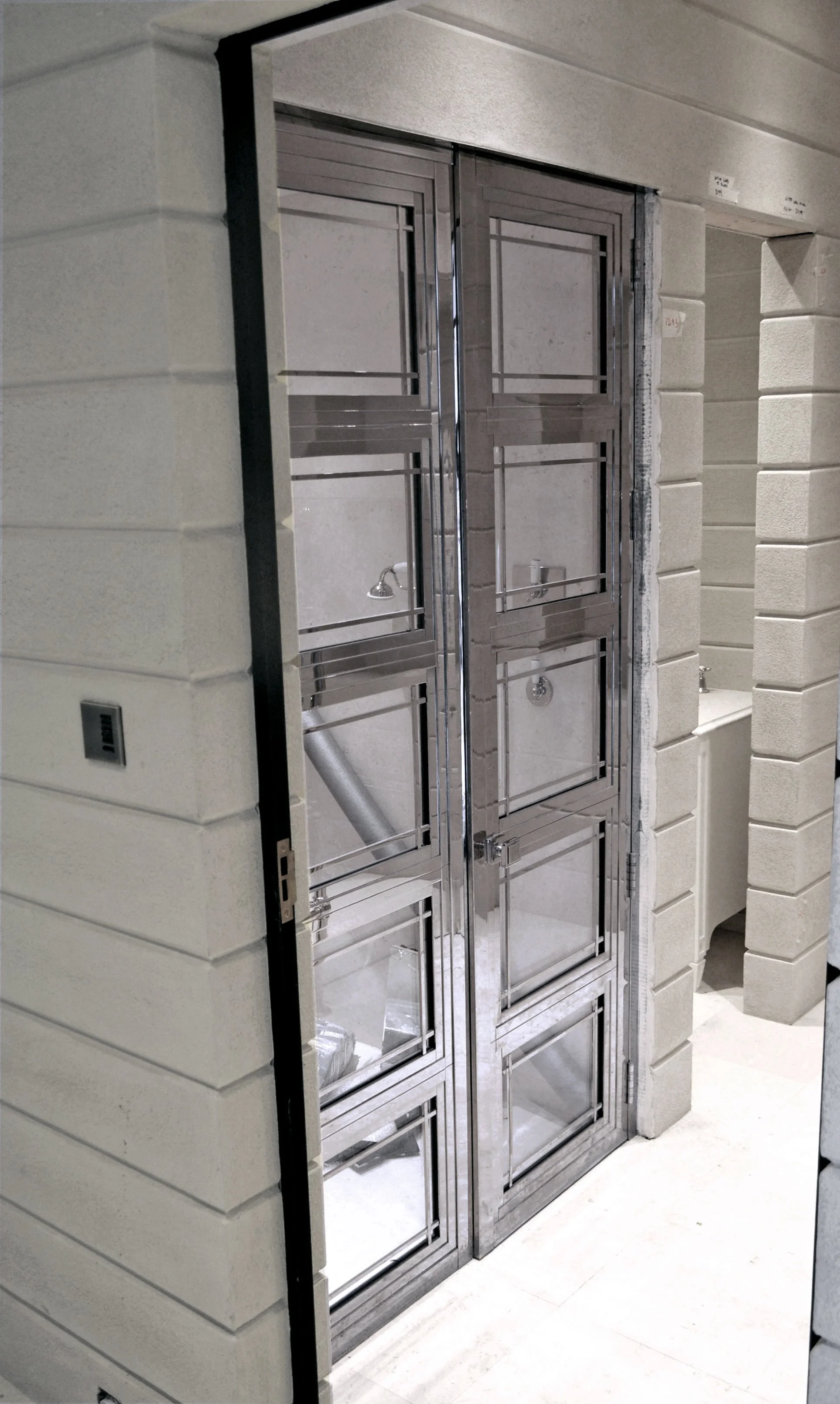

Nickel Doors

Bathroom doors and screens

Specifications:

Size 2500.0mm x 800.0mm x 32.0mm

Weight: 125.0kg ea

This beautiful set of nickel doors were produced from mirror polished brass which has been generously plated with nickel

The doors are fitted with rubber gaskets and seals which facilitate their use in a shower and spa environment

Doors manufactured post site survey.

Initial sketches and site survey data

Nickel shower doors with reeded low iron glass

Shower doors fitted with low iron reeded glass. From client sketches to production drafts to manufacture.

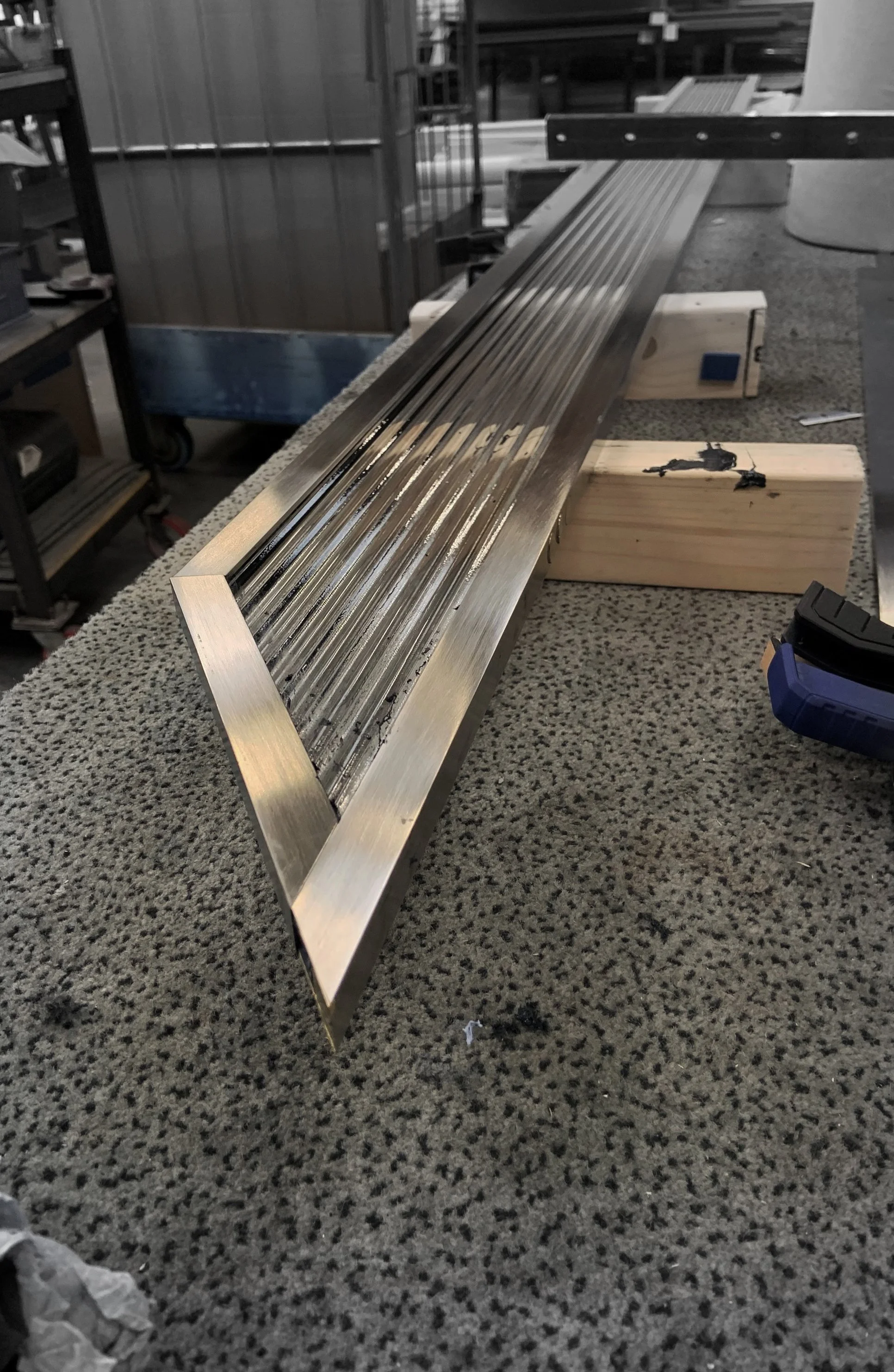

Brass section is machined down to requested size. Fittings are then manufactured to suit these profiles.

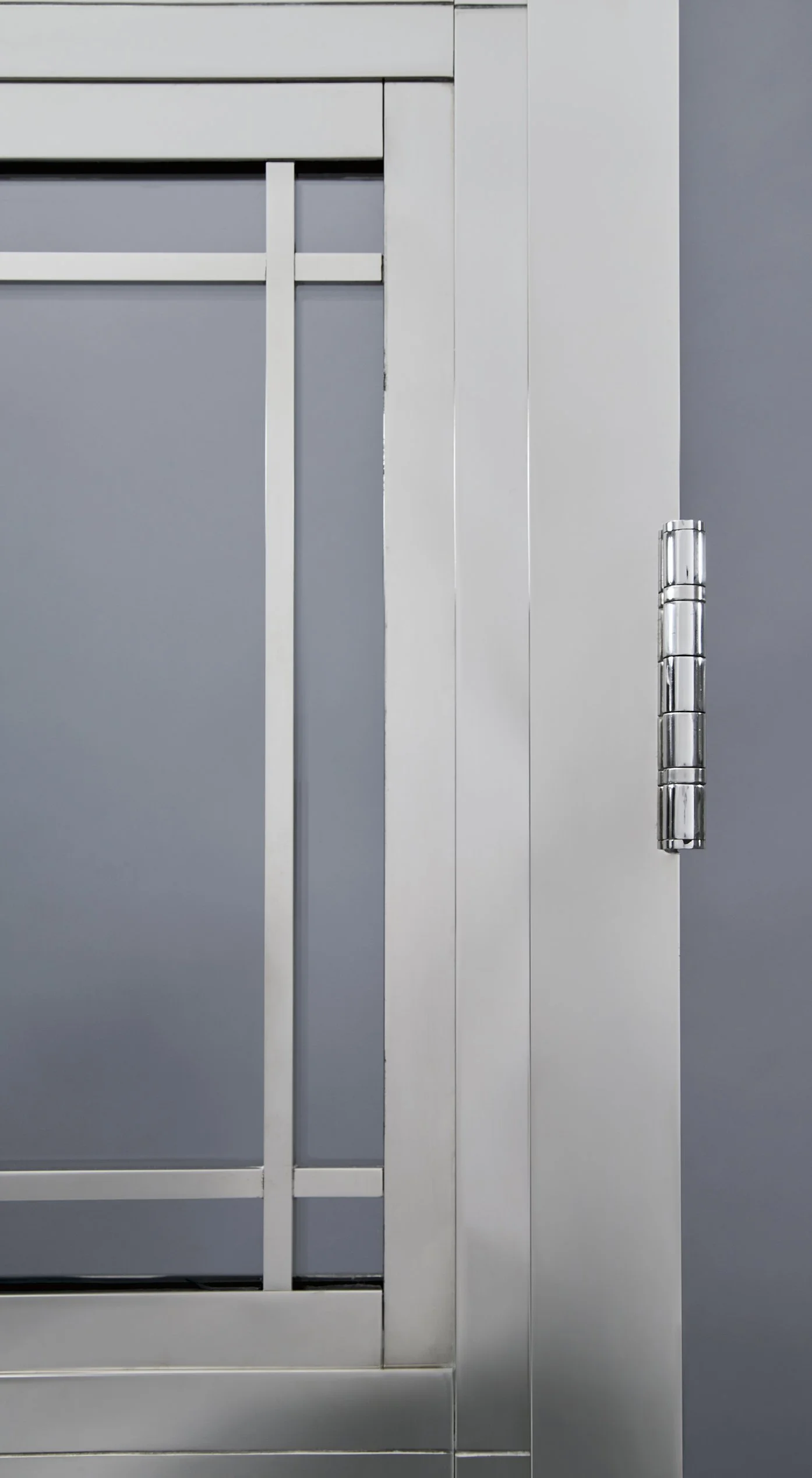

Hinges were fabricated to fit into these exceptionally narrow section profiles all nickel plated and satinised to match door frames.

Doors fitted with high strength magnets to facilitate positive close.

Handles: Fabricated from solid brass square with subsequent nickel plating and linear brush polishing

Frames: Machined from solid brass into bespoke channels. These are then mitred before being polished, nickel plated and then brushed to complete the finishing process

Install of finished product

Workflow

Engineering drawings produced from site survey

Manufacture of parts and assembly
